Keeton Aeration Systems

KR Series

Keeton KR Series offered by Overton Fisheries

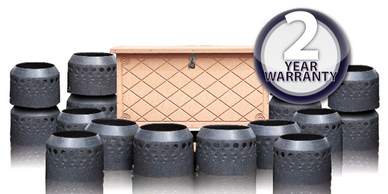

The KR series of pond management aeration systems, our most popular,  are ideally suited for small ponds and lakes up to 5 surface acres in  size. The single 1/2 HP compressor offers up to 5.3 cfm of air and 40psi  of pressure. The small (18″W x 16″L x 21″T) recycled plastic cabinet  blends in perfectly to maintain a natural look. The KR series can operate up to four Duraplate diffusers. Alpine self-weighted tubing is include with the –B models.

Find out more

DR Series

Keeton DR Series offered by Overton Fisheries

The DR series of aeration systems houses two 1/2 HP compressors in a  medium (20″W x 24″ L x 27″T) recycled plastic cabinet. The DR can  operate up to eight Duraplate™ diffusers allowing it to effectively  aerate large ponds and lakes up to 10 surface acres in size. Alpine™  self-weighted tubing can be purchased separately.

Find out more

TR Series

Keeton TR Series offered by Overton Fisheries

The TR series of aeration systems houses three 1/2 HP compressors in a  long (20″W x 36″L x 27″T) recycled plastic cabinet. The TR can operate  up to 12 Duraplate™ diffusers allowing it to effectively aerate large  ponds and lakes up to 25 surface acres in size. Alpine™ self-weighted  tubing can be purchased separately.

Find out more

QR Series

Keeton QR Series offered by Overton Fisheries

The QR series of aeration systems houses four 1/2 HP compressors in a  long (20″W x 36″L x 27″T) recycled plastic cabinet. The QR can operate  up to 16 Duraplate™ diffusers allowing it to effectively aerate large  ponds and lakes up to 32 surface acres in size. Alpine™ self-weighted  tubing can be purchased separately.

Find out more

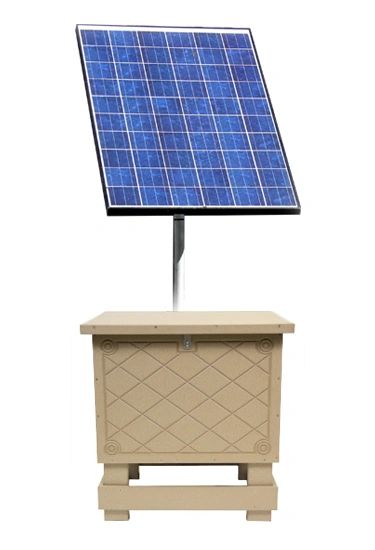

SB1 & SB2 Solaer Systems

Keeton Solar SB Series Aeration Systems offered by Overton Fisheries

The battery back-up enables the system to run at night or during  extended periods of poor weather. Solaer™ is designed to operate 20  hours per day and has enough battery capacity to run the system up to  three days without any solar input. Solaer™ systems include solar panels  with pole mounting bracket, a specially designed, energy efficient  compressor, a high volume cooling fan, a fully adjustable aluminum  manifold, Duraplate™ diffusers and self-weighted Alpine™ tubing.

Find out more

SB3 & SB4 Solaer Systems

Keeton Solar SB Series Aeration Systems offered by Overton Fisheries

The battery back-up enables the system to run at night or during  extended periods of poor weather. Solaer™ is designed to operate 20  hours per day and has enough battery capacity to run the system up to  three days without any solar input. Solaer™ systems include solar panels  with pole mounting bracket, a specially designed, energy efficient  compressor, a high volume cooling fan, a fully adjustable aluminum  manifold, Duraplate™ diffusers and self-weighted Alpine™ tubing.

Find out more
Keeton TR Series Aeration Systems offered by Overton Fisheries

KR Series Aeration Systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 18”W x 16”L x 21” T
  • 135cfm cooling blower
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Programmable digital timer
  • 4-valve adjustable aluminum manifold
  • 8’ grounded plug

The Compressor

  • 1/2 HP Rocking Piston
  • 5.3 cfm air flow
  • 40psi max pressure
  • 115V – 5.3A max, 2.6A average
  • Thermal overload protection
  • Pressure relief valve
  • Intake filter
  • Pressure Gauge

The Tubing

  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Duraplate Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 1/4 Acre to 4 Acres
  •   1 Adjustable Manifold
  •   1 to 4 Diffusers
  •   Single Compressor


Download Spec Sheet


Watch Installation Video

Get pricing
Keeton DR Series Aeration Systems offered by Overton Fisheries

DR Series Aeration systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 20”W x 24”L x 27” T
  • 135cfm cooling blower
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Programmable digital timer
  • (2) 4-valve adjustable aluminum manifold
  • 8’ grounded plug

The Compressor

  • (2) 1/2 HP Rocking Piston
  • 10.6 cfm air flow
  • 40psi max pressure
  • 115V – 10.6A max, 5.2A average
  • Thermal overload protection
  • Pressure relief valve
  • Intake filter
  • Pressure Gauge

The Tubing

  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Duraplate Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 4 Acres to 8 Acres
  •   2 Adjustable Manifolds
  •   4 to 8 Diffusers
  •   Dual Compressor


Download Spec Sheet


Watch Installation Video

Get Pricing
Overton Fisheries offers Keeton TR Series Aeration Systems

TR Series Aeration Systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 20”W x 36”L x 27” T
  • 275 cfm cooling blower
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Programmable digital timer
  • (3) 4-valve adjustable aluminum manifold
  • 8’ grounded plug

The Compressor

  • (3) 1/2 HP Rocking Piston
  • 15.9 cfm air flow
  • 40psi max pressure
  • 115V – 15.9A max, 7.8A average
  • Thermal overload protection
  • Pressure relief valve
  • Intake filter
  • Pressure Gauge

The Tubing

  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Duraplate Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 6 Acres to 24 Acres
  • 3 Adjustable Manifold
  • 6 to 12 Diffusers
  • Triple Compressor


Download Spec Sheet


Watch Installation Video

Get pricing
Overton Fisheries offers Keeton QR Series Aeration Systems

QR Series Aeration Systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 20”W x 36”L x 27” T
  • 275cfm cooling blower
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Programmable digital timer
  • (4) 4-valve adjustable aluminum manifold
  • 8’ grounded plug

The Compressor

  • (4) 1/2 HP Rocking Piston
  • 21.2 cfm air flow
  • 40psi max pressure
  • 115V – 21.2A max, 10.4A average
  • Thermal overload protection
  • Pressure relief valve
  • Intake filter
  • Pressure Gauge

The Tubing

  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Duraplate Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 12 Acres to 32 Acres
  • 4 Adjustable Manifolds
  • 12 to 16 Diffusers
  • Quad Compressor


Download Spec Sheet


Watch Installation Video

Get Pricing
Overton Fisheries offers Keeton SB1 & SB2 Series Solar Powered Aeration Systems

SB1 & SB2 Solaer Aeration Systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 20”W x 24”L x 27” T
  • 37cfm cooling blower
  • Two – 2 Valve Adjustable Manifolds
  • Programmable Digital Timer
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Charge Control System
  • Dual EcoFlow 24V Compressors
  • 24 V High Efficiency Solar Panel

The Tubing

  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 1/4 Acre - 2 Acres
  • 1 Adjustable Manifold
  • 1 to 2 Diffusers
  • Single Compressor
  • Improve Water Quality
  • Enhance Water Clarity
  • Improve Dissolved Oxygen
  • Increase Fish & Aquatic Life
  • Remove Bottom Sludge
  • Decrease Offensive Odors
  • Solar Powered
  • Standard Systems for Ponds Up to 2 Acres


Download Spec Sheet


Watch Installation Video

Get Pricing
Overton Fisheries offers Keeton SB3 & SB4 Series Solar Powered Aeration Systems

SB3 & SB4 Series Solaer Aeration Systems

The Cabinet

  • Attractive, 100% recycled plastic cabinet
  • 20”W x 36”L x 27” T
  • 37cfm cooling blower
  • Two – 2 Valve Adjustable Manifolds
  • Programmable Digital Timer
  • Sound reduction package
  • 1” ASTM certified Acoustical Foam
  • Charge Control System
  • Dual EcoFlow 24V Compressors

The Tubing


  • Self-weighted
  • 1/2” I.D. with 1/4” sidewalls
  • Fishhook resistant
  • Will not kink or break
  • Available in 100’ and 500’ lengths
  • 15 year warranty

The Diffuser

  • Self-cleaning
  • Non-clogging
  • Self-weighted
  • Fishhook resistant
  • High Oxygen transfer
  • Lifetime warranty

  • 3 Acres to 5 Acres
  • 2-3 Adjustable Manifolds
  • 3-4 Diffusers
  • Dual Compressor
  • Improve Water Quality
  • Enhance Water Clarity
  • Improve Dissolved Oxygen
  • Increase Fish & Aquatic Life
  • Remove Bottom Sludge
  • Decrease Offensive Odors
  • Solar Powered
  • Standard Systems for Ponds Up to 5 Acres


Download Spec Sheet


Watch Installation Video


Get Pricing

Keeton KR Series Pricing

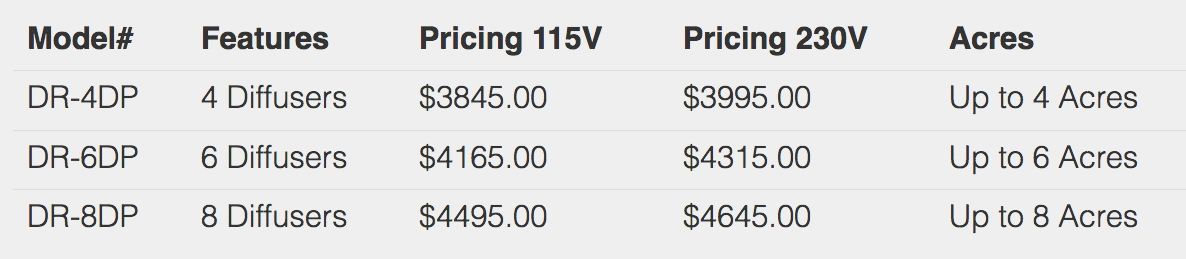

Keeton DR Series Pricing


Keeton TR Series Pricing


Keeton QR Series Pricing


Keeton SB1/SB2 Pricing

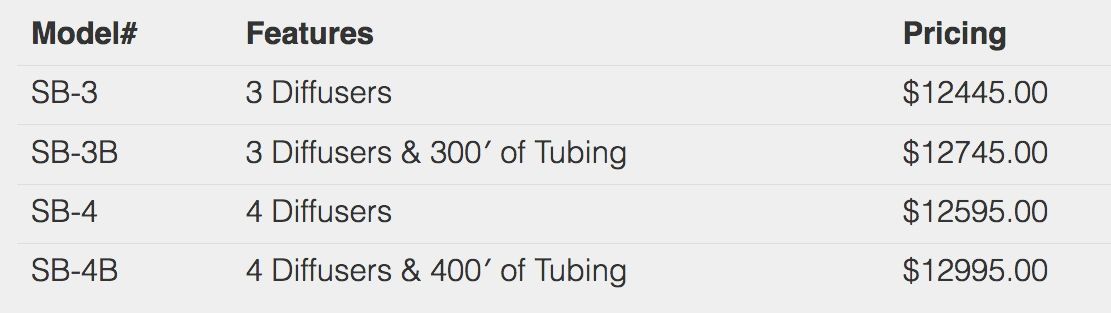

Keeton SB3/SB4 Pricing

Keeton Aeration Installation Video
